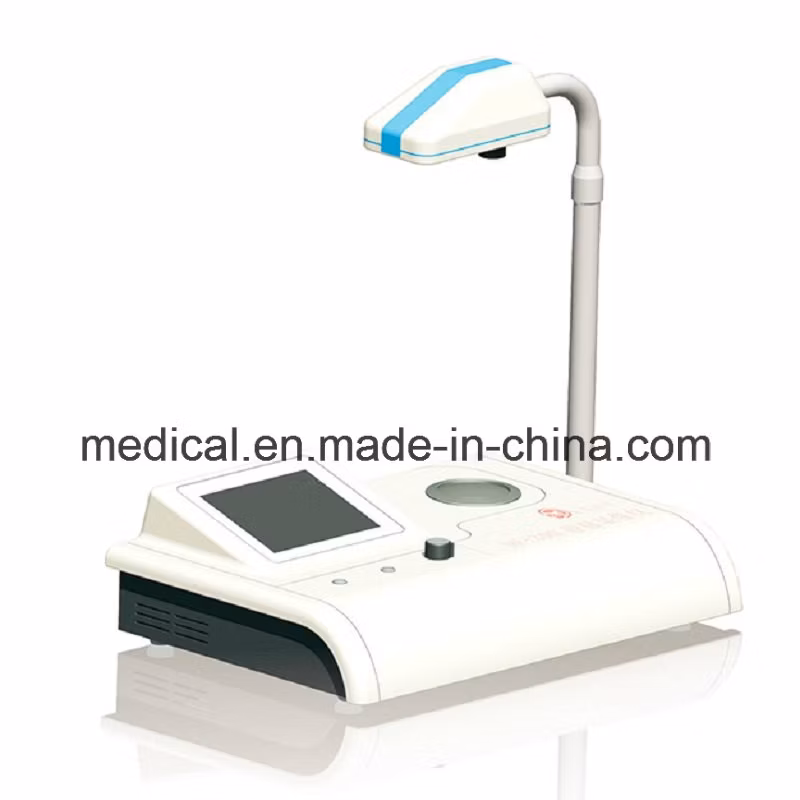

portable vein finder
1.Portable, non-contact design
2.Used in venipuncture to display veins beneath the skin's surface
vein locator vein viewing portable vein finder
It is mainly applied by the medical staff for observing and locating patient's subcutaneous vein in hospitals and clinics.
1.Portable, non-contact design
2.Used in venipuncture to display veins beneath the skin's surface
vein locator vein viewing portable vein finder
It is mainly applied by the medical staff for observing and locating patient's subcutaneous vein in hospitals and clinics.
item | parameter |
effective projection distance | 29cm~31cm |
Projection illuminance | 300lux~1000lux |
Illumination light including wave length | 750nm~980nm |
Precision error | <1mm |
Rechargeable battery | Lithium polymer battery |
Power adapter | Input: 100-240Va.c., 50/60Hz, 0.7A Output:dc. 5V 4A,20W Max |
Vein finder size | 185mm×115mm×55mm,Deviation±5mm |
Vein finder weight | ≤0.7kg |
Stand weight | Vein finder stand I: ≤1.1kg |
Vein finder stand II: ≤3.5kg | |
Water resistance | IPX0 |
